Wireless Switch - No Sensor

Regular price $19.95 Sale

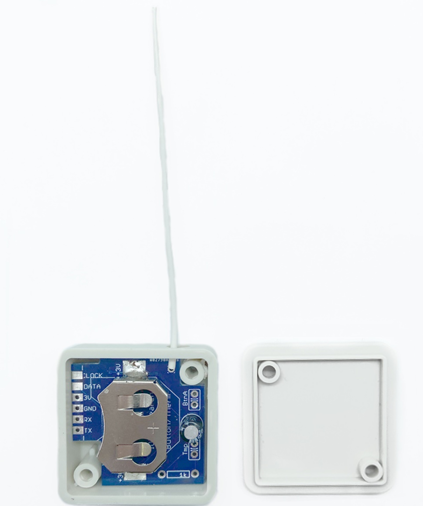

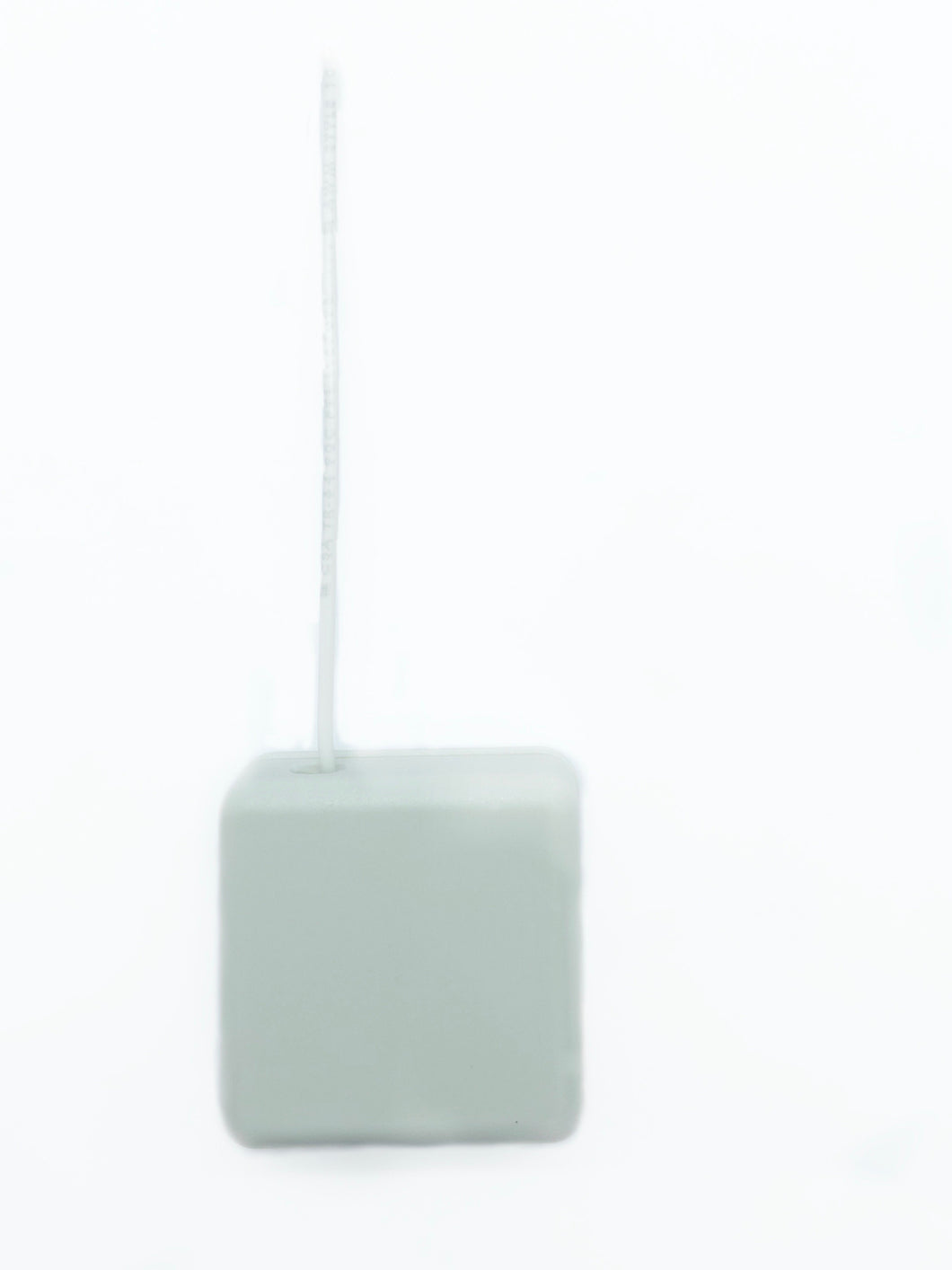

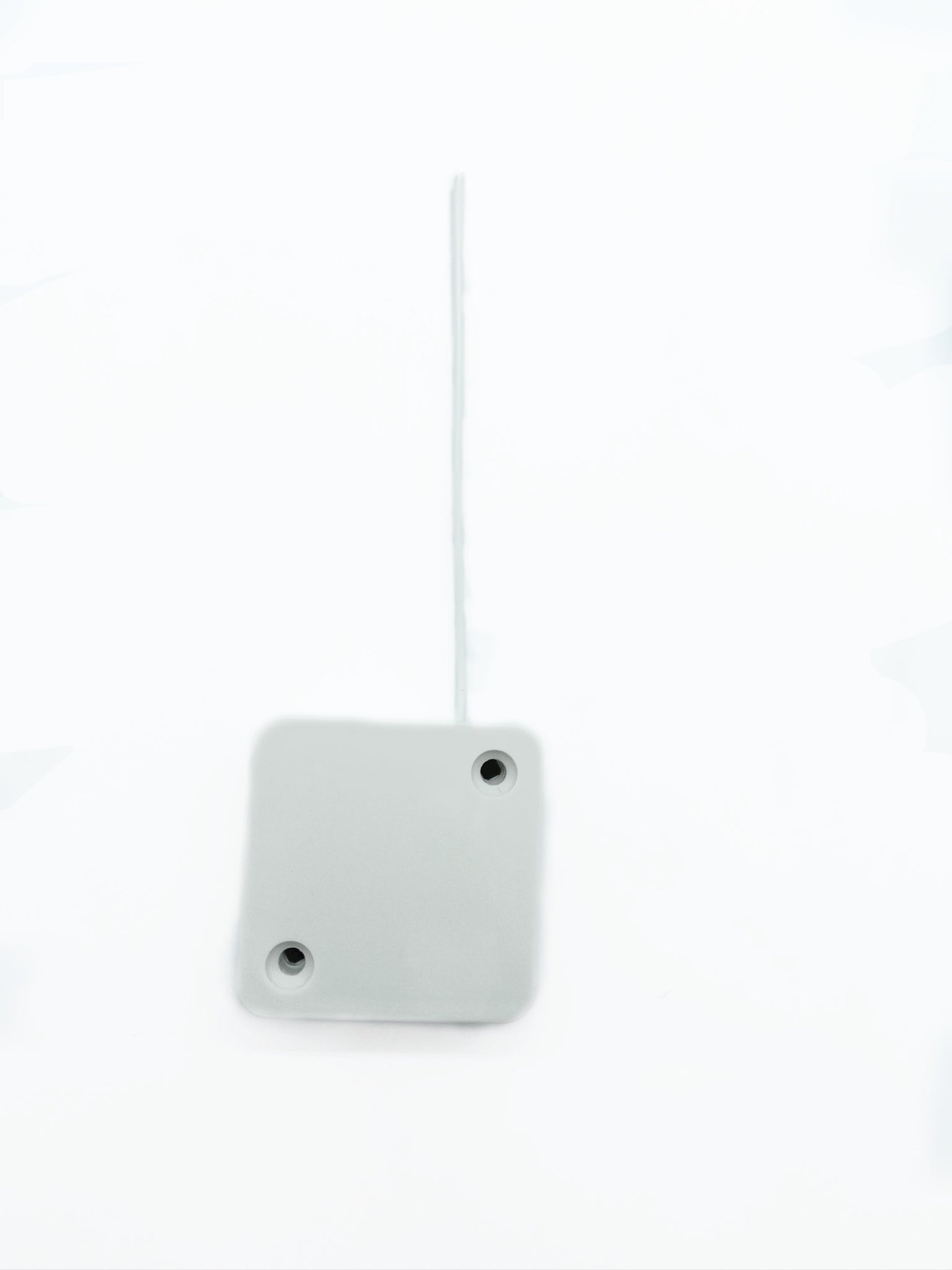

The wireless switch can be used for monitoring doors and windows. This option does not include the Door/Window switch and can be connected to your existing door/window reed sensor style sensors. It is small (1” x 1” or 2.54cm x 2.54cm) and can be installed discretely. Battery life is around 1 year depending on number of transmissions. Rugged but elegant cream plastic plastic case allows the sensor to be deployed both indoors and outdoors and if sealed with silicone could be water resistant. Using an external power source it can operate in request/reply or publish mode. When asleep it is awoken by a change in the external switch (i.e. open or close) to send readings. If powered externally then the device can operate in a fully awake mode and can respond to requests for switch state in a request/reply fashion. The device will also transmit switch state changes when in fully awake mode.

Optimize battery life

Tested at 288 (144 door open/door close) messages per day for 1 year on one battery.

If you are using this sensor for doors and windows that are normally closed then use a Normally Closed switch.

If you are using the sensor with a door or window that is normally open then use a Normally Open switch.

Tutorials:

Technical Specs:

All devices are based on the high-performance RF transceiver based on the market-leading CC1100 SOC.
Wide operating voltage range of 2-3.6V makes the devices suited for battery power.
Current consumption: RX: 16.2 mA , TX: 15.2 mA. Deep Sleep : 0.005Ma (0.5 µA).
Up to 1KM line of sight. Short range (30M) penetration of walls and floors.
128-bit AES encryption security.
Driver-less installation.
All the devices are highly configurable through the serial port or over the air using the LLAP messaging protocol specified in the manual.
Base station communicates through serial port (TTL UART).
Communicates in ASCII clear text making it very easy to exchange data between devices over the air.
Supports point to point, point to multi-point, multi-point to point and multi-point to multi-point.
Virtually unlimited amount of devices can be deployed. 99,999 Personal Area Network ID’s, 10 channels per frequency and 7,744 Device ID’s per network.
Super low power consumption allows devices to be use with a coin cell battery for long periods of time (up to 1 year depending on transmission rates).
Supports 6 frequencies (433 MHZ, 915 MHZ (default US & Canada), 868.3 MHZ (default Europe), 868 MHZ, 903 MHZ, 315 MHZ)
10 channels per frequency.
4 pins for communicating with external micro-controllers like Raspberry Pi and Arduino : Tx, Rx, GND, 3V3.
Battery monitor to keep track of power consumption.
